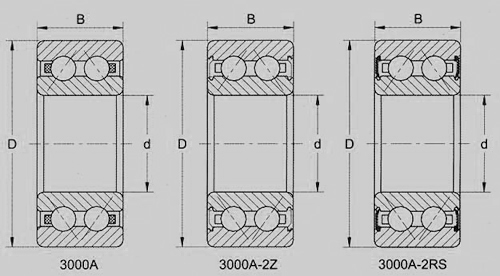

双列角接触球轴承

发布时间：2015-07-13　浏览量：4946

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
10	26	12	3000	5.5	3.2	18000	23000	0.022
	26	12	3000-2RS	5.5	3.2	18000	-	0.022
	26	12	3000-2Z	5.5	3.2	18000	-	0.022
	30	14.3	3200	7.5	4.3	16000	21000	0.050
	30	14.3	3200-2RS	7.5	4.3	16000	-	0.050
	30	14.3	3200-2Z	7.5	4.3	16000	-	0.050
12	28	12	3001	6.1	3.7	17000	22000	0.025
	28	12	3001-2RS	6.1	3.7	17000	-	0.025
	28	12	3001-2Z	6.1	3.7	17000	-	0.025
	32	15.9	3201	9.0	4.9	14000	19000	0.058
	32	15.9	3201-2RS	9.0	4.9	14000	-	0.058
	32	15.9	3201-2Z	9.0	4.9	14000	-	0.058
15	32	13	3002	8.5	5.4	14500	18000	0.036
	32	13	3002-2RS	8.5	5.4	14500	-	0.036
	32	13	3002-2RS	8.5	5.4	14500	-	0.036
	35	15.9	3202	10.0	6.0	11000	16000	0.066
	35	15.9	3202-2RS	10.0	6.0	11000	-	0.066
	35	15.9	3202-2Z	10.0	6.0	11000	-	0.066
	42	19.0	3302	14.0	8.0	10000	15000	0.130
	42	19.0	3302-2RS	14.0	8.0	10000	-	0.130
	42	19.0	3302-2Z	14.0	8.0	10000	-	0.130
17	35	14	3003	9.0	6.0	12500	16000	0.042
	35	14	3003-2RS	9.0	6.0	12500	-	0.042
	35	14	3003-2Z	9.0	6.0	12500	-	0.042
	40	17.5	3203	12.7	7.8	9000	14000	0.096
	40	17.5	3203-2RS	12.7	7.8	9000	-	0.096
	40	17.5	3203-2Z	12.7	7.8	9000	-	0.096
	47	22.2	3303	17.3	10.4	8000	12000	0.180
	47	22.2	3303-2RS	17.3	10.4	8000	-	0.180
	47	22.2	3303-2Z	17.3	10.4	8000	-	0.180
20	32	10	3804	4.9	3.9	13000	14300	0.020
	32	10	3804-2RS	4.9	3.9	13000	-	0.020
	32	10	3804-2Z	4.9	3.9	13000	-	0.020
	37	13	3904	9.3	6.6	12000	13200	0.046
	37	13	3904-2RS	9.3	6.6	12000	-	0.046
	37	13	3904-2Z	9.3	6.6	12000	-	0.046

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
20	42	16	3004	14.2	9.6	11000	13000	0.080
	42	16	3004-2RS	14.2	9.6	11000	-	0.080
	42	16	3004-2Z	14.2	9.6	11000	-	0.080
	47	20.6	3204	19.0	12.1	8000	12000	0.160
	47	20.6	3204-2RS	19.0	12.1	8000	-	0.160
	47	20.6	3204-2Z	19.0	12.1	8000	-	0.160
	52	22.2	3304	19.0	12.3	8500	12000	0.220
	52	22.2	3304-2RS	19.0	12.3	8500	-	0.220
	52	22.2	3304-2Z	19.0	12.3	8500	-	0.220
25	37	10	3805	5.5	4.9	11500	12700	0.025
	37	10	3805-2RS	5.5	4.9	11500	-	0.025
	37	10	3805-2Z	5.5	4.9	11500	-	0.025
	42	13	3905	9.6	7.5	11000	12300	0.062
	42	13	3905-2RS	9.6	7.5	11000	-	0.062
	42	13	3905-2Z	9.6	7.5	11000	-	0.062
	47	16	3005	15.2	11.0	9500	12000	0.100
	47	16	3005-2RS	15.2	11.0	9500	-	0.100
	47	16	3005-2Z	15.2	11.0	9500	-	0.100
	52	20.6	3205	20.6	13.9	7500	10000	0.190
	52	20.6	3205-2RS	20.6	13.9	7500	-	0.190
	52	20.6	3205-2Z	20.6	13.9	7500	-	0.190
	62	25.4	3305	27.6	17.8	7500	10000	0.367
	62	25.4	3305-2RS	27.6	17.8	7500	-	0.367
	62	25.4	3305-2Z	27.6	17.8	7500	-	0.367
30	42	10	3806	5.7	5.6	10000	11500	0.030
	42	10	3806-2RS	5.7	5.6	10000	-	0.030
	42	10	3806-2Z	5.7	5.6	10000	-	0.030
	47	13	3906	9.9	8.3	9500	10500	0.095
	47	13	3906-2RS	9.9	8.3	9500	-	0.095
	47	13	3906-2Z	9.9	8.3	9500	-	0.095
	55	19	3006	20.3	15.5	8000	10000	0.160
	55	19	3006-2RS	20.3	15.5	8000	-	0.160
	55	19	3006-2Z	20.3	15.5	8000	-	0.160
	62	23.8	3206	25.7	18.5	6300	8500	0.310
	62	23.8	3206-2RS	25.7	18.5	6300	-	0.310
	62	23.8	3206-2Z	25.7	18.5	6300	-	0.310

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
	72	30.2	3306	37.2	25.9	6000	8000	0.590
	72	30.2	3306-2RS	37.2	25.9	6000	-	0.590
	72	30.2	3306-2Z	37.2	25.9	6000	-	0.590
35	47	10	3807	6.1	6.2	8500	10000	0.035
	47	10	3807-2RS	6.1	6.2	8500	-	0.035
	47	10	3807-2Z	6.1	6.2	8500	-	0.035
	55	15	3907	12.9	11.3	8000	9500	0.138
	55	15	3907-2RS	12.9	11.3	8000	-	0.138
	55	15	3907-2Z	12.9	11.3	8000	-	0.138
	62	20	3007	24.2	20.4	6500	8500	0.240
	62	20	3007-2RS	24.2	20.4	6500	-	0.240
	62	20	3007-2Z	24.2	20.4	6500	-	0.240
	72	27	3207	30.4	23.5	5600	7500	0.510
	72	27	3207-2RS	30.4	23.5	5600	-	0.510
	72	27	3207-2Z	30.4	23.5	5600	-	0.510
	80	34.9	3307	46.1	35.3	5300	7000	0.820
	80	34.9	3307-2RS	46.1	35.3	5300	-	0.820
	80	34.9	3307-2Z	46.1	35.3	5300	-	0.820
40	52	10	3808	6.4	6.9	7000	8500	0.040
	52	10	3808-2RS	6.4	6.9	7000	-	0.040
	52	10	3808-2Z	6.4	6.9	7000	-	0.040
	62	16	3908	17.4	15.8	6500	8000	0.158
	62	16	3908-2RS	17.4	15.8	6500	-	0.158
	62	16	3908-2Z	17.4	15.8	6500	-	0.158
	68	21	3008	24.5	20.8	6000	7800	0.279
	68	21	3008-2RS	24.5	20.8	6000	-	0.279
	68	21	3008-2Z	24.5	20.8	6000	-	0.279
	80	30.2	3208	40.8	30.2	5300	7000	0.640
	80	30.2	3208-2RS	40.8	30.2	5300	-	0.640
	80	30.2	3208-2Z	40.8	30.2	5300	-	0.640
	90	36.5	3308	54.9	40.1	4800	6300	1.060
	90	36.5	3308-2RS	54.9	40.1	4800	-	1.060
	90	36.5	3308-2Z	54.9	40.1	4800	-	1.060
45	58	10	3809	6.7	7.7	6300	7000	0.055
	58	10	3809-2RS	6.7	7.7	6300	-	0.055
	58	10	3809-2Z	6.7	7.7	6300	-	0.055

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
	68	16	3909	17.9	17.2	6000	6800	0.183
	68	16	3909-2RS	17.9	17.2	6000	-	0.183
	68	16	3909-2Z	17.9	17.2	6000	-	0.183
	75	23	3009	39.3	36.4	5600	6200	0.364
	75	23	3009-2RS	39.3	36.4	5600	-	0.364
	75	23	3009-2Z	39.3	36.4	5600	-	0.364
	85	30.2	3209	42.8	34.5	4800	6300	0.720
	85	30.2	3209-2RS	42.8	34.5	4800	-	0.720
	85	30.2	3209-2Z	42.8	34.5	4800	-	0.720
	100	39.7	3309	72.1	52.0	4300	5600	1.240
	100	39.7	3309-2RS	72.1	52.0	4300	-	1.240
	100	39.7	3309-2Z	72.1	52.0	4300	-	1.240
50	65	12	3810	7.0	8.4	6000	7500	0.075
	65	12	3810-2RS	7.0	8.4	6000	-	0.075
	65	12	3810-2Z	7.0	8.4	6000	-	0.075
	72	16	3910	19.1	19.6	5800	7200	0.189
	72	16	3910-2RS	19.1	19.6	5800	-	0.189
	72	16	3910-2Z	19.1	19.6	5800	-	0.189
	80	23	3010	42.3	41.9	5300	6600	0.395
	80	23	3010-2RS	42.3	41.9	5300	-	0.395
	80	23	3010-2Z	42.3	41.9	5300	-	0.395
	90	30.2	3210	43.2	35.3	4500	6000	0.780
	90	30.2	3210-2RS	43.2	35.3	4500	-	0.780
	90	30.2	3210-2Z	43.2	35.3	4500	-	0.780
	110	44.4	3310	84.9	62.6	4000	5300	1.960
	110	44.4	3310-2RS	84.9	62.6	4000	-	1.960
	110	44.4	3310-2Z	84.9	62.6	4000	-	1.960
55	72	13	3811	12.8	14.4	5500	6500	0.010
	72	13	3811-2RS	12.8	14.4	5500	-	0.010
	72	13	3811-2Z	12.8	14.4	5500	-	0.010
	80	19	3911	20.0	21.7	5300	6200	0.282
	80	19	3911-2RS	20.0	21.7	5300	-	0.282
	80	19	3911-2Z	20.0	21.7	5300	-	0.282
	90	26	3011	43.7	44.7	4800	5800	0.581
	90	26	3011-2RS	43.7	44.7	4800	-	0.581
	90	26	3011-2Z	43.7	44.7	4800	-	0.581

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
55	100	33.3	3211	53.9	47.2	4000	5300	1.030
	100	33.3	3211-2RS	53.9	47.2	4000	-	1.030
	100	33.3	3211-2Z	53.9	47.2	4000	-	1.030
	120	49.2	3311	106.3	82.0	3600	4800	2.400
	120	49.2	3311-2RS	106.3	82.0	3600	-	2.400
	120	49.2	3311-2Z	106.3	82.0	3600	-	2.400
60	78	14	3812	13.6	16.2	5000	5500	0.140
	78	14	3812-2RS	13.6	16.2	5000	-	0.140
	78	14	3812-2Z	13.6	16.2	5000	-	0.140
	85	19	3912	21.0	23.8	4800	5300	0.303
	85	19	3912-2RS	21.0	23.8	4800	-	0.303
	85	19	3912-2Z	21.0	23.8	4800	-	0.303
	95	26	3012	47.2	53.4	4400	5000	0.621
	95	26	3012-2RS	47.2	53.4	4400	-	0.621
	95	26	3012-2Z	47.2	53.4	4400	-	0.621
	110	36.5	3212	61.3	52.6	3800	5000	1.400
	110	36.5	3212-2RS	61.3	52.6	3800	-	1.400
	110	36.5	3212-2Z	61.3	52.6	3800	-	1.400
	130	54.0	3312	121.4	95.1	3400	4500	3.240
	130	54.0	3312-2RS	121.4	95.1	3400	-	3.240
	130	54.0	3312-2Z	121.4	95.1	3400	-	3.240
65	85	15	3813	15.1	18.3	4700	5200	0.182
	85	15	3813-2RS	15.1	18.3	4700	-	0.182
	85	15	3813-2Z	15.1	18.3	4700	-	0.182
	90	19	3913	21.4	24.8	4500	5000	0.324
	90	19	3913-2RS	21.4	24.8	4500	-	0.324
	90	19	3913-2Z	21.4	24.8	4500	-	0.324
	100	26	3013	49.5	59.2	4000	4800	0.661
	100	26	3013-2RS	49.5	59.2	4000	-	0.661
	100	26	3013-2Z	49.5	59.2	4000	-	0.661
	120	38.1	3213	73.4	66.6	3400	4500	1.840
	120	38.1	3213-2RS	73.4	66.6	3400	-	1.840
	120	38.1	3213-2Z	73.4	66.6	3400	-	1.840
	140	58.7	3313	137.5	109.6	2800	3700	2.900
	140	58.7	3313-2RS	137.5	109.6	2800	-	2.900
	140	58.7	3313-2Z	137.5	109.6	2800	-	2.900

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
70	90	15	3814	18.0	21.9	4400	4800	0.190
	90	15	3814-2RS	18.0	21.9	4400	-	0.190
	90	15	3814-2Z	18.0	21.9	4400	-	0.190
	100	23	3914	25.8	30.0	4000	4600	0.516
	100	23	3914-2RS	25.8	30.0	4000	-	0.516
	100	23	3914-2Z	25.8	30.0	4000	-	0.516
	110	30	3014	54.2	58.9	3600	4400	0.950
	110	30	3014-2RS	54.2	58.9	3600	-	0.950
	110	30	3014-2Z	54.2	58.9	3600	-	0.950
	125	39.7	3214	80.5	73.8	3200	4300	1.980
	125	39.7	3214-2RS	80.5	73.8	3200	-	1.980
	125	39.7	3214-2Z	80.5	73.8	3200	-	1.980
	150	63.5	3314	154.5	125.1	2800	3800	4.700
	150	63.5	3314-2RS	154.5	125.1	2800	-	4.700
	150	63.5	3314-2Z	154.5	125.1	2800	-	4.700
75	95	15	3815	16.0	20.3	4200	4700	0.224
	95	15	3815-2RS	16.0	20.3	4200	-	0.224
	95	15	3815-2Z	16.0	20.3	4200	-	0.224
	105	23	3915	26.0	31.3	3800	4300	0.546
	105	23	3915-2RS	26.0	31.3	3800	-	0.546
	105	23	3915-2Z	26.0	31.3	3800	-	0.546
	115	30	3015	57.7	66.5	3400	4000	1.003
	115	30	3015-2RS	57.7	66.5	3400	-	1.003
	115	30	3015-2Z	57.7	66.5	3400	-	1.003
	130	41.3	3215	87.9	81.4	3000	3600	2.010
	130	41.3	3215-2RS	87.9	81.4	3000	-	2.010
	130	41.3	3215-2Z	87.9	81.4	3000	-	2.010
	160	68.3	3315	171.4	134.8	2600	3200	6.300
	160	68.3	3315-2RS	171.4	134.8	2600	-	6.300
	160	68.3	3315-2Z	171.4	134.8	2600	-	6.300
80	100	15	3816	16.5	21.7	4000	4400	0.230
	100	15	3816-2RS	16.5	21.7	4000	-	0.230
	100	15	3816-2Z	16.5	21.7	4000	-	0.230
	110	23	3916	26.7	32.5	3500	4000	0.576
	110	23	3916-2RS	26.7	32.5	3500	-	0.576
	110	23	3916-2Z	26.7	32.5	3500	-	0.576

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
	125	34	3016	63.5	67.8	3100	3800	1.380
	125	34	3016-2RS	63.5	67.8	3100	-	1.380
	125	34	3016-2Z	63.5	67.8	3100	-	1.380
	140	44.4	3216	103.7	97.5	2800	3600	2.480
	140	44.4	3216-2RS	103.7	97.5	2800	-	2.480
	140	44.4	3216-2Z	103.7	97.5	2800	-	2.480
	170	68.3	3316	190.1	151.7	2400	3400	7.210
	170	68.3	3316-2RS	190.1	151.7	2400	-	7.210
	170	68.3	3316-2Z	190.1	151.7	2400	-	7.210
85	110	19	3817	22.0	28.7	3600	4000	0.407
	110	19	3817-2RS	22.0	28.7	3600	-	0.407
	110	19	3817-2Z	22.0	28.7	3600	-	0.407
	120	26	3917	31.5	38.5	3300	3700	0.821
	120	26	3917-2RS	31.5	38.5	3300	-	0.821
	120	26	3917-2Z	31.5	38.5	3300	-	0.821
	130	34	3017	68.3	77.5	2900	3600	1.447
	130	34	3017-2RS	68.3	77.5	2900	-	1.447
	130	34	3017-2Z	68.3	77.5	2900	-	1.447
	150	49.2	3217	111.8	106.4	2400	3500	3.200
	150	49.2	3217-2RS	111.8	106.4	2400	-	3.200
	150	49.2	3217-2Z	111.8	106.4	2400	-	3.200
	180	73	3317	189.4	234.5	2200	3200	8.300
	180	73	3317-2RS	189.4	234.5	2200	-	8.300
	180	73	3317-2Z	189.4	234.5	2200	-	8.300
90	115	19	3818	23.3	30.8	3300	3600	0.450
	115	19	3818-2RS	23.3	30.8	3300	-	0.450
	115	19	3818-2Z	23.3	30.8	3300	-	0.450
	125	26	3918	32.1	40.1	3100	3400	0.861
	125	26	3918-2RS	32.1	40.1	3100	-	0.861
	125	26	3918-2Z	32.1	40.1	3100	-	0.861
	140	37	3018	69.8	77.3	2700	3300	1.872
	140	37	3018-2RS	69.8	77.3	2700	-	1.872
	140	37	3018-2Z	69.8	77.3	2700	-	1.872
	160	52.4	3218	111.8	106.4	2400	3200	4.500
	160	52.4	3218-2RS	111.8	106.4	2400	-	4.500
	160	52.4	3218-2Z	111.8	106.4	2400	-	4.500

基本尺寸 Principal Dimensions			型号 Designation	额定负荷(kN) Basis Load ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷 Dynamic	静负荷 Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
	190	73.0	3318	230.6	193.3	2000	3000	9.230
	190	73.0	3318-2RS	230.6	193.3	2000	-	9.230
	190	73.0	3318-2Z	230.6	193.3	2000	-	9.230
95	120	19	3819	23.6	31.8	3200	3500	0.501
	120	19	3819-2RS	23.6	31.8	3200	-	0.501
	120	19	3819-2Z	23.6	31.8	3200	-	0.501
	130	26	3919	32.6	41.7	3000	3300	0.901
	130	26	3919-2RS	32.6	41.7	3000	-	0.901
	130	26	3919-2Z	32.6	41.7	3000	-	0.901
	145	37	3019	72.4	82.9	2600	3100	1.954
	145	37	3019-2RS	72.4	82.9	2600	-	1.954
	145	37	3019-2Z	72.4	82.9	2600	-	1.954
	170	55.6	3219	145.0	198.7	2200	3000	5.010
	170	55.6	3219-2RS	145.0	198.7	2200	-	5.010
	170	55.6	3219-2Z	145.0	198.7	2200	-	5.010
100	125	19	3820	23.7	32.8	3100	3400	0.560
	125	19	3820-2RS	23.7	32.8	3100	-	0.560
	125	19	3820-2Z	23.7	32.8	3100	-	0.560
	140	30	3920	37.9	48.5	2800	3200	1.270
	140	30	3920-2RS	37.9	48.5	2800	-	1.270
	140	30	3920-2Z	37.9	48.5	2800	-	1.270
	150	37	3020	74.7	88.2	2500	2800	2.040
	150	37	3020-2RS	74.7	88.2	2500	-	2.040
	150	37	3020-2Z	74.7	88.2	2500	-	2.040
	180	60.3	3220	185.0	172.0	2000	2500	5.820
	180	60.3	3220-2RS	185.0	172.0	2000	-	5.820
	180	60.3	3220-2Z	185.0	172.0	2000	-	5.820

>> 返回
